++++++++++Description+++
+The+old+days+are+over.+getting+your+electronics+full+of+dirt+and+wet+grass+every+time+you+crash.+Our+latest+frame+reduces+contamination+that+could+build+up+on+your+flight+controller+or+ESCs.+preventing+failure+or+short+circuits.+Strategic+airflow+to+keep+your+components+cool+and+clean+without+taking+any+shortcuts+in+weight+or+performance.+Illuminated+side+panels+and+360-degree+TPU+protective+parts.+
+
+++++Highlights+++
+V1+to+V2+was+upgraded+for+the+DJI+O3+HD+Air+Unit+Digital+Transmission+
+
+Specially+Designed+Heatsink+for+DJI+O3+Air+Unit+
+
+New+Camera+Mount+for+a+wider+camera+FOV+with+TPU+damping+inserts+
+

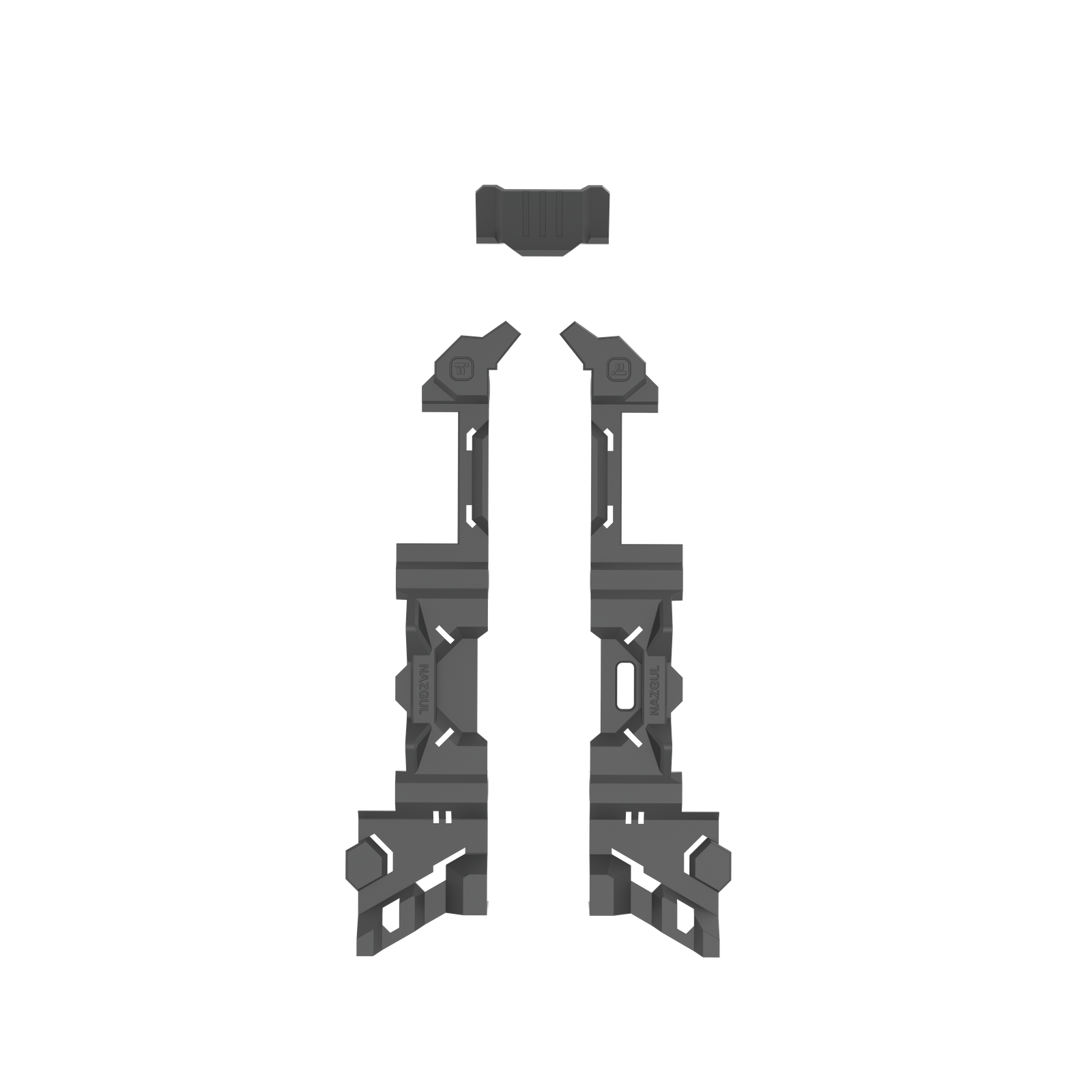

+New+Side+Panels+to+perfectly+fit+the+O3+Air+Unit+in+the+back+
+
+New+Dual+5.8G+VTX+Antenna+TPU+mount+
+
+Latest+Nazgul+Frame+Upgrades+for+Maximum+Protection+
+
++Optional+Parts+to+select+(not+included+in+frame+kit):++
+
+New+Anti+Spark+Filter+to+prevent+rapid+voltage+and+current+spikes+plugging+in+a+battery+
+

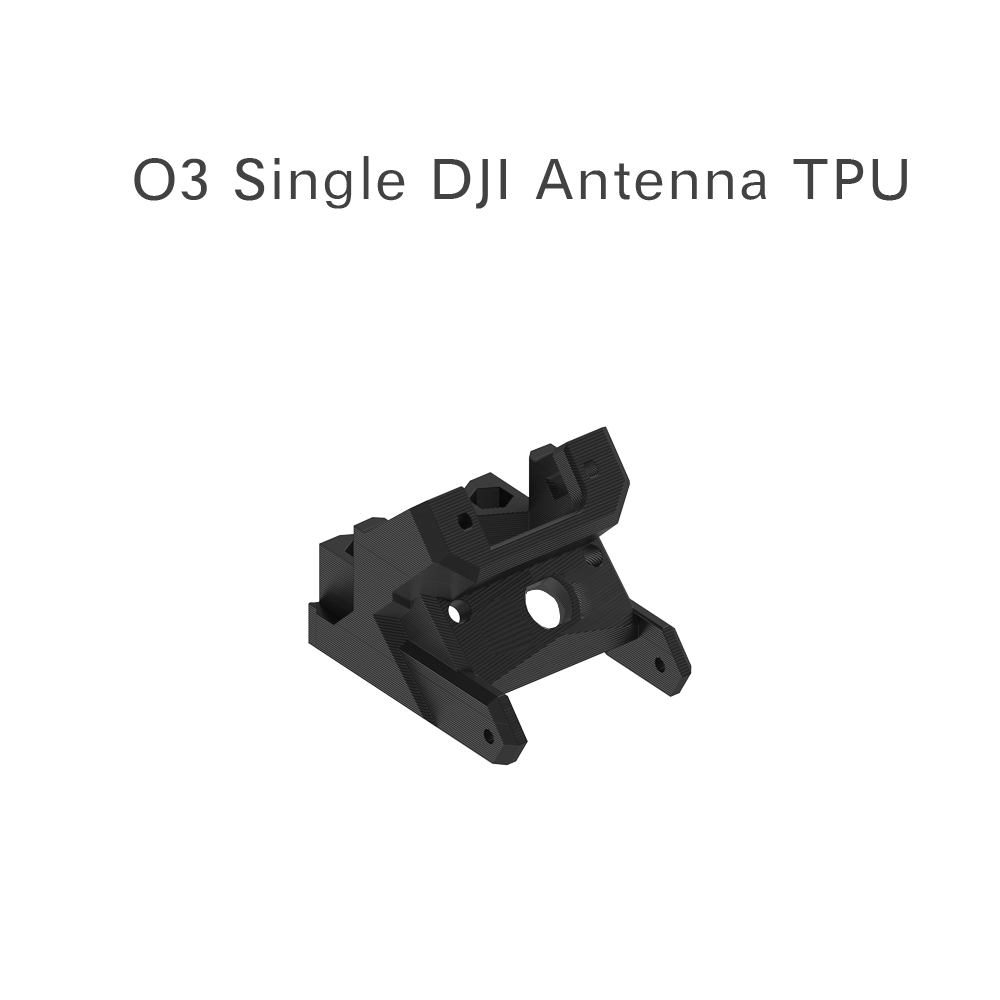

+Single+DJI+VTX+Antenna+TPU+to+install+the+original+DJI+O3+set+included+antenna.+
+++++Upgrading+your+Nazgul+F5+V1?+++
+If+you+want+to+upgrade+your+Nazgul+Evoque+F5+V1+with+the+DJI+O3+Air+Unit+read+this:+
+
+-+The+FC+(Flight+Controller)+to+O3+VTX+connector+is+different+than+the+older+Caddx+Vista/Polar+plug.+You’ll+need+to+DIY.+
+
+-+The+RX+(Receiver)+position+changed.+V1+antenna+length+is+75mm.+V2+is+220mm.+You’ll+need+to+DIY.+
+
+-+The+XT60+plug+was+changed.+you’ll+need+to+de-solder+the+V1+plug+and+install+the+V2+plug.+Included+in+the+frame+kit.+
+
+-+If+you’re+going+from+F5X+V1+to+F5X+V2+all+motor+wires+will+have+the+same+length.+
+
+-+If+you’re+going+from+F5X+V1+to+F5D+V2+the+back+motor+wires+need+to+be+extended.+since+you+change+frame+geometry.+
+
+-+The+Antenna+TPU+in+the+back+comes+in+2+Versions;+One+for+the+original+single+DJI+VTX+antenna.+or+one+for+the+dual+antenna+setup.+The+kit+includes+a+dual+antenna+TPU.+2x+5.8G+LHCP+antennas+need+to+be+installed.+
+
+-+The+Nazgul+Evoque+F5+V2+BNF+comes+with+a+new+Anti+Spark+filter+pre-installed.+Please+select+the+option+to+purchase+separately;+it’s+not+included+in+the+frame+kit.+
+++++Changelog+++
+December+13.+2022:+New+silicone+inserts+have+been+designed+to+replace+the+TPU+ones .which+are+holding+the+03+cam+in+the+side+panels.+
+
+++++Specifications+++

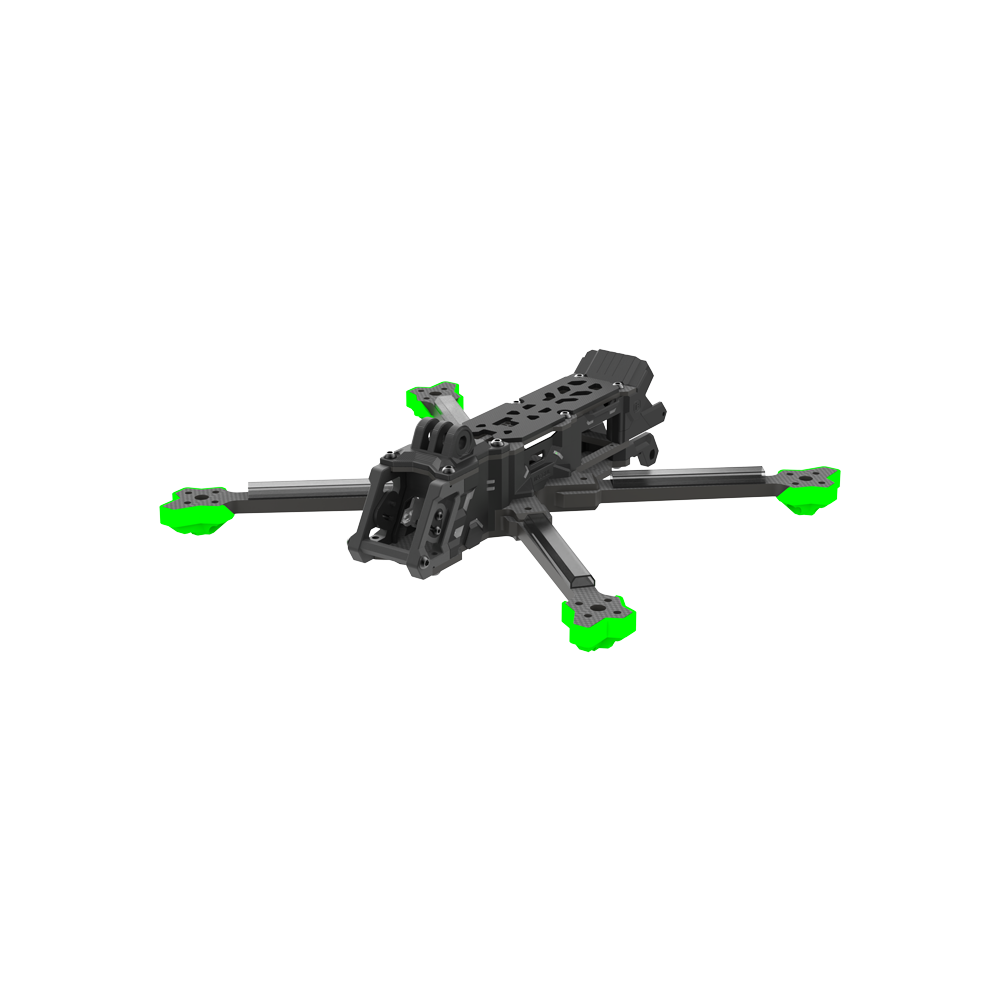

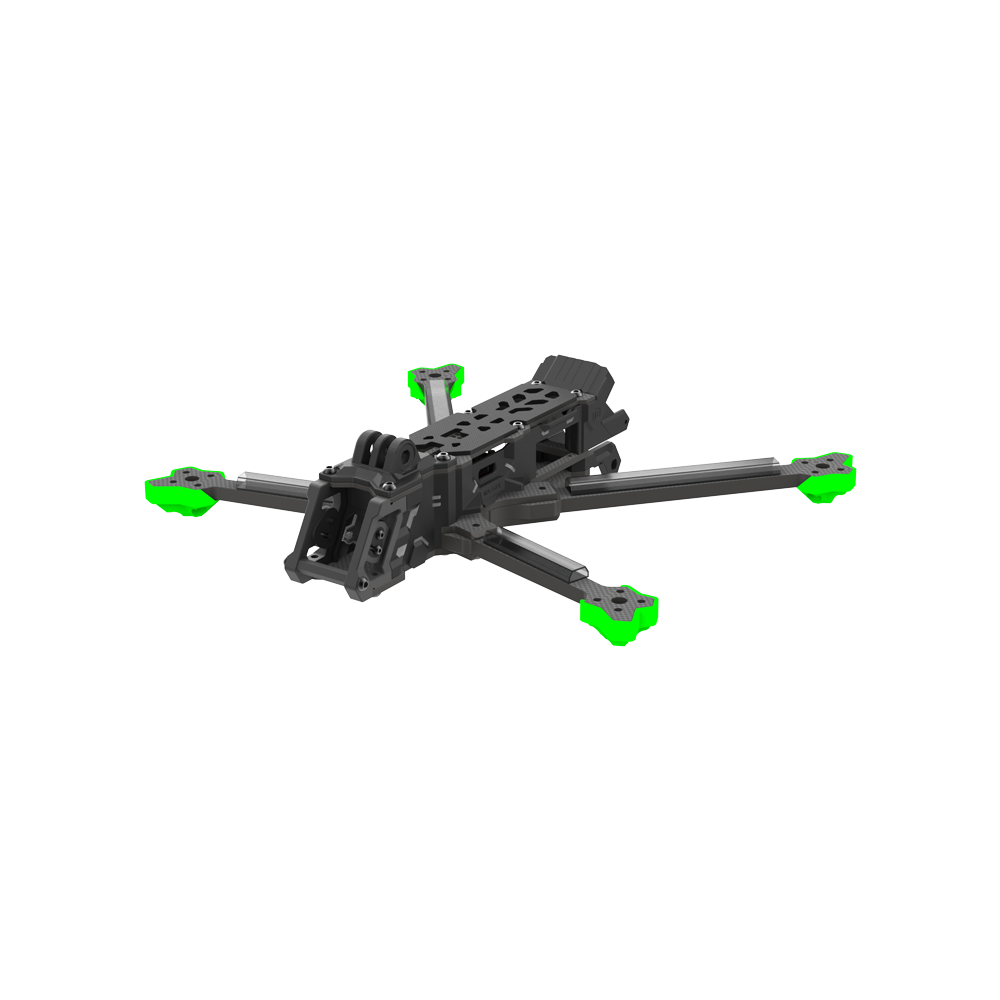

+Product+Name:+Evoque+F5+V2+Frame+Kit+
+
+Frame+wheelbase:+225mm+(Squashed+X)+/+223+mm+(DeadCat)+
+
+Frame+Dimension:+L172*W145*H36+mm+(Squashed+X)+/+L190*W136*H36+mm+(DeadCat)+
+
+Frame+Body+Dimension:+36mm+
+
+Arm+Thickness:+6mm+
+
+Bottom+Plate+Thickness:+3mm+
+
+Top+Plate+Thickness:+2mm+
+
+Upper+Plate+Thickness:+3mm+
+
+Camera+Plate+Thickness:+3mm+
+
+Max+Flight+Stack+Height:+22mm+
+
+
+
+Max+VTX+Height:+23mm+
+
+Motor+Mounting:+16x16mm+
+
+Flight+Stack+Mounting:+20*20/Φ3mm+
+
+
+
+Weight:+240±5g+(Squashed+X)+/242±5g(DeadCat)+
+
+++++Packing+List+++
+1+x+Evoque+F5+V2+Frame+Kit+
+
+1x+O3+Air+Unit+Heatsink+
+
+2x+IPEX+to+RP-SMA+Antenna+Pigtails+
+
+1+x+Dual+Antenna+TPU+
+

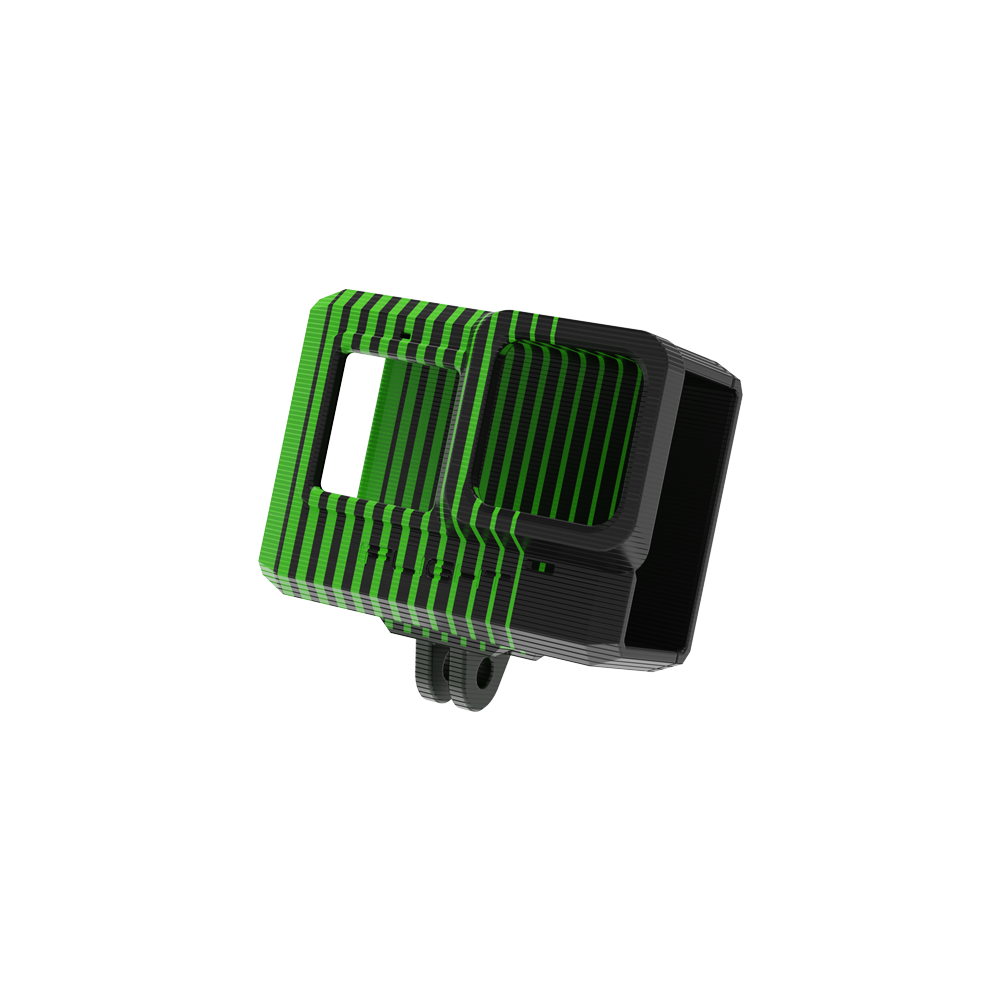

+1+x+GoPro+TPU+Base+Mount+
+
+1+x+Screw+Bag+
+
+4+x+TPU+Arm+guard+
+
+1+x+Front+Bumper+TPU+
+
+1+x+Rear+Bumper+TPU+
+
+2+x+Anti-slip+Battery+Pad+
+
+2+x+Battery+Strap+
+
+++++Note+++
+Due+to+manufacturing+processes.+the+thickness+of+our+products+may+have+a+standard+manufacturing+tolerance+of+±0.2mm.+The+size+of+the+hole+may+have+a+standard+manufacturing+tolerance+of+±0.1mm.+
+
+++++++++
