Description+++
+
+++++Changelog+++
++Mar.+11.+2025++:+Frame+Kit+updated+to+be+compatible+with+DJI+O4+Air+Unit+and+DJI+O4+Air+Unit+Pro.+
+
+++++Features+++
+Supports+up+to+3.5+Props+
+
+AOS+X-Cell+Anti-Vibration+Technology+
+
+Up+to+two+25.5×25.5.+or+20×20+mm+stacks+
+
+155°+FOV+no+props+in+view+
+
+Fully+DJI+O3+compatible+(soft+mount+++ND+filters)+
+
+Supports+19-20mm+cameras+(hard+or+soft+mounted)+
+
+Reinforced+7075+Aluminium+Camera+Cage+
+
+Supports+Lengthwise+or+Toilet+Tank+battery+mounting+
+
+⌀9+-+⌀12mm+motor+mounting+(supports+all+standard+3+-+4+motors)+
+
+27x21mm+M2+GoPro+Mounting+Pattern+
+
+
+32mm+Rear+Standoff+Spacing+(compatible+with+all+AOS+3.5+antenna+mounts)+
+++++Specifications+++

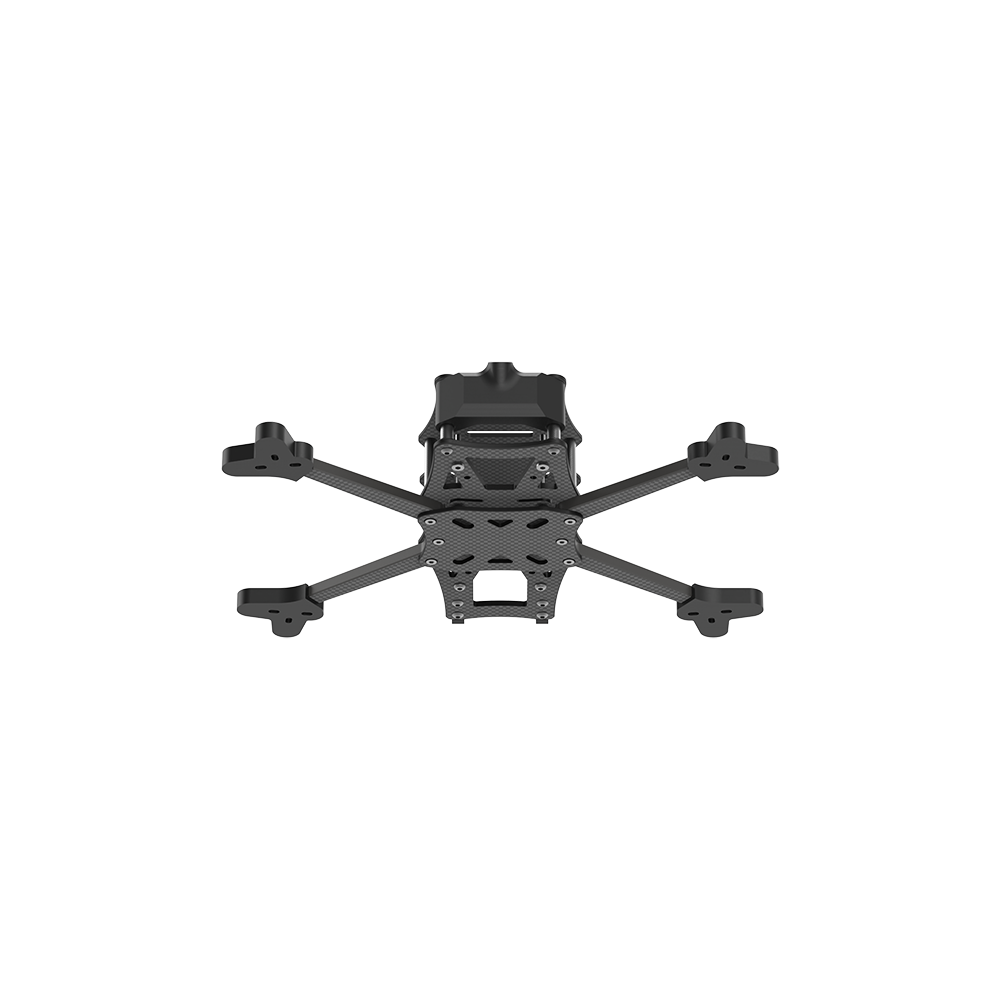

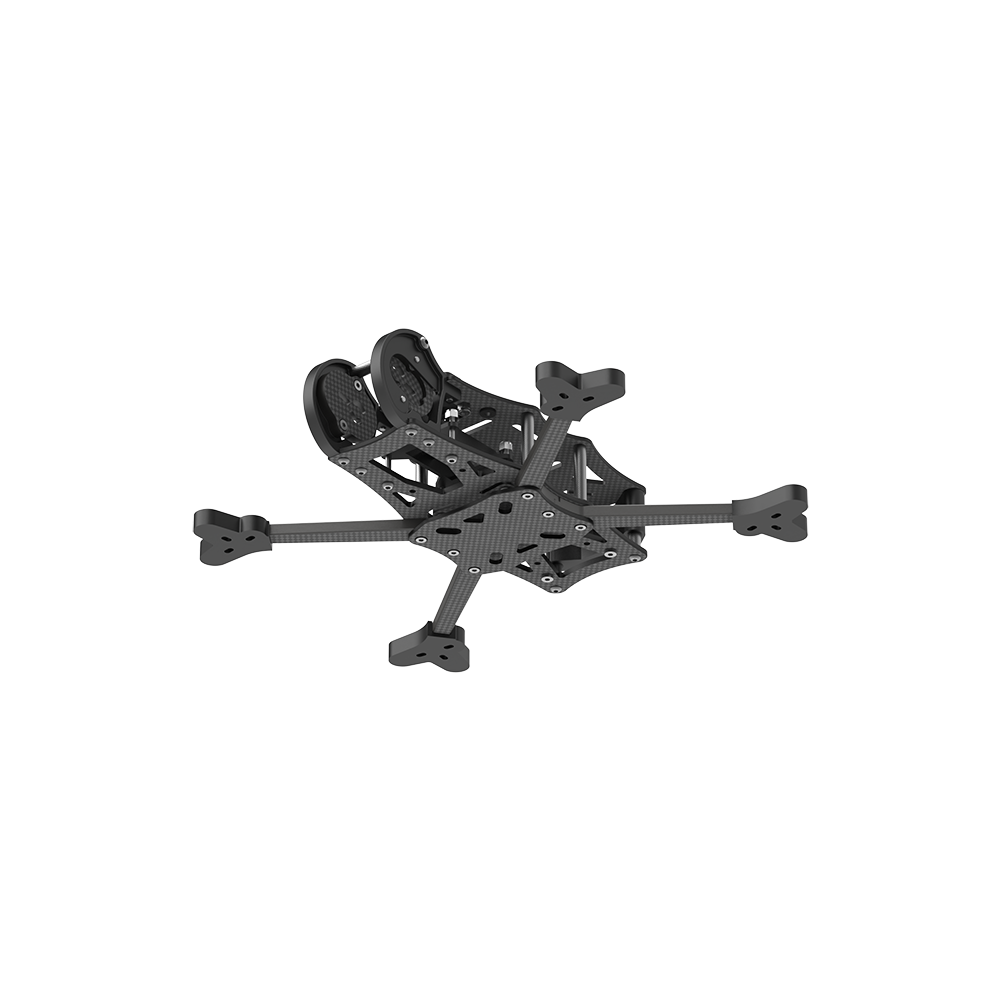

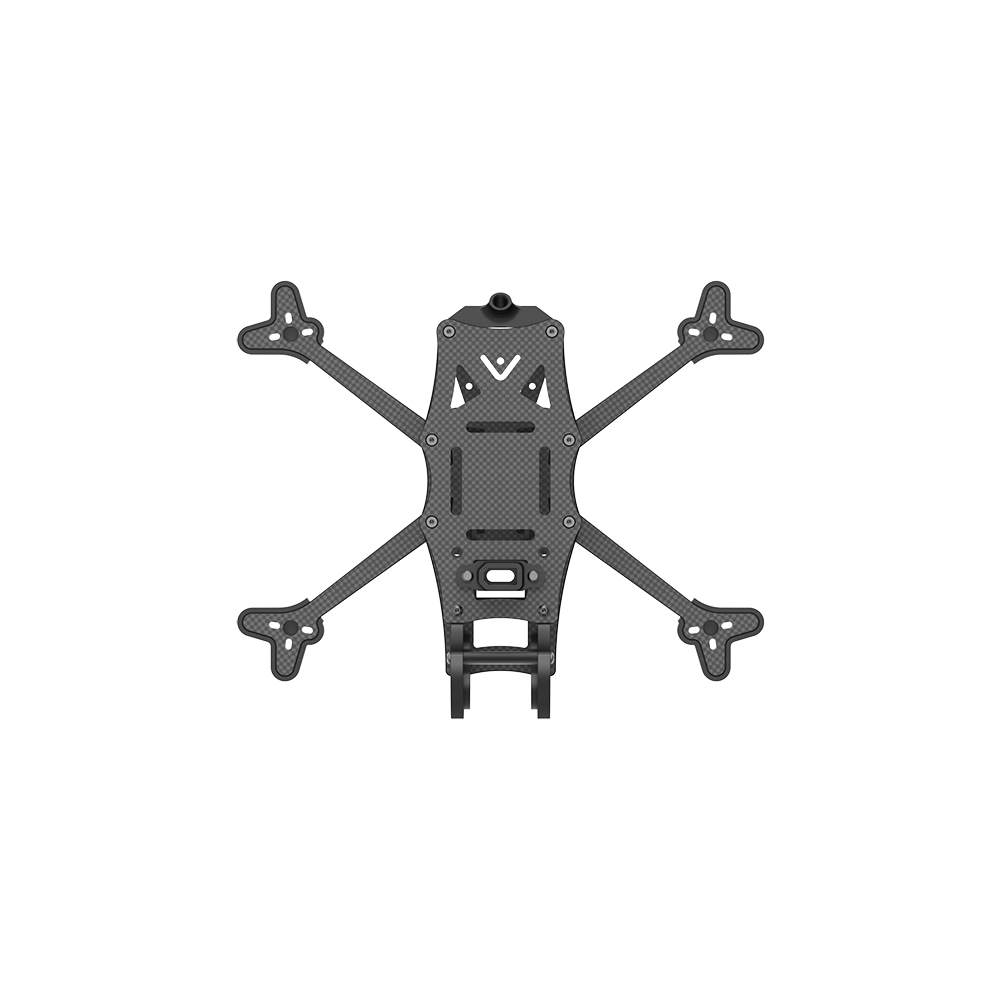

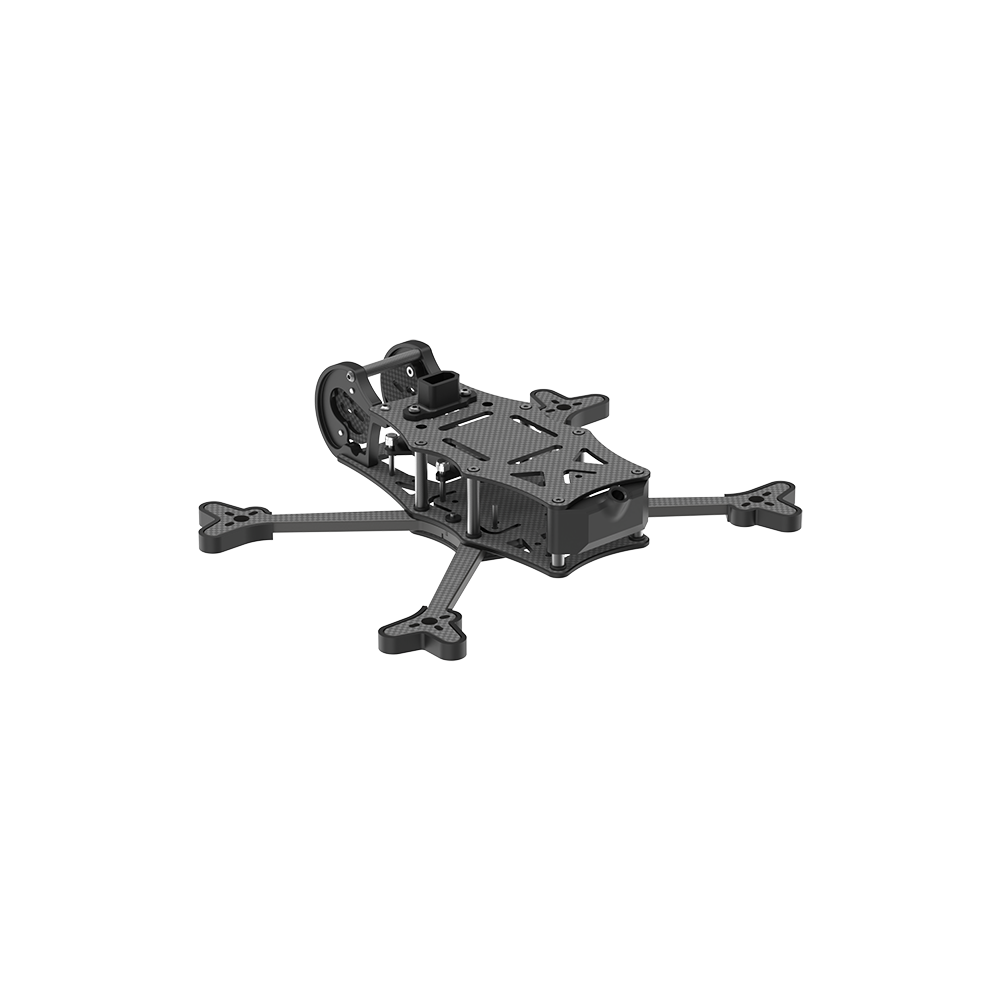

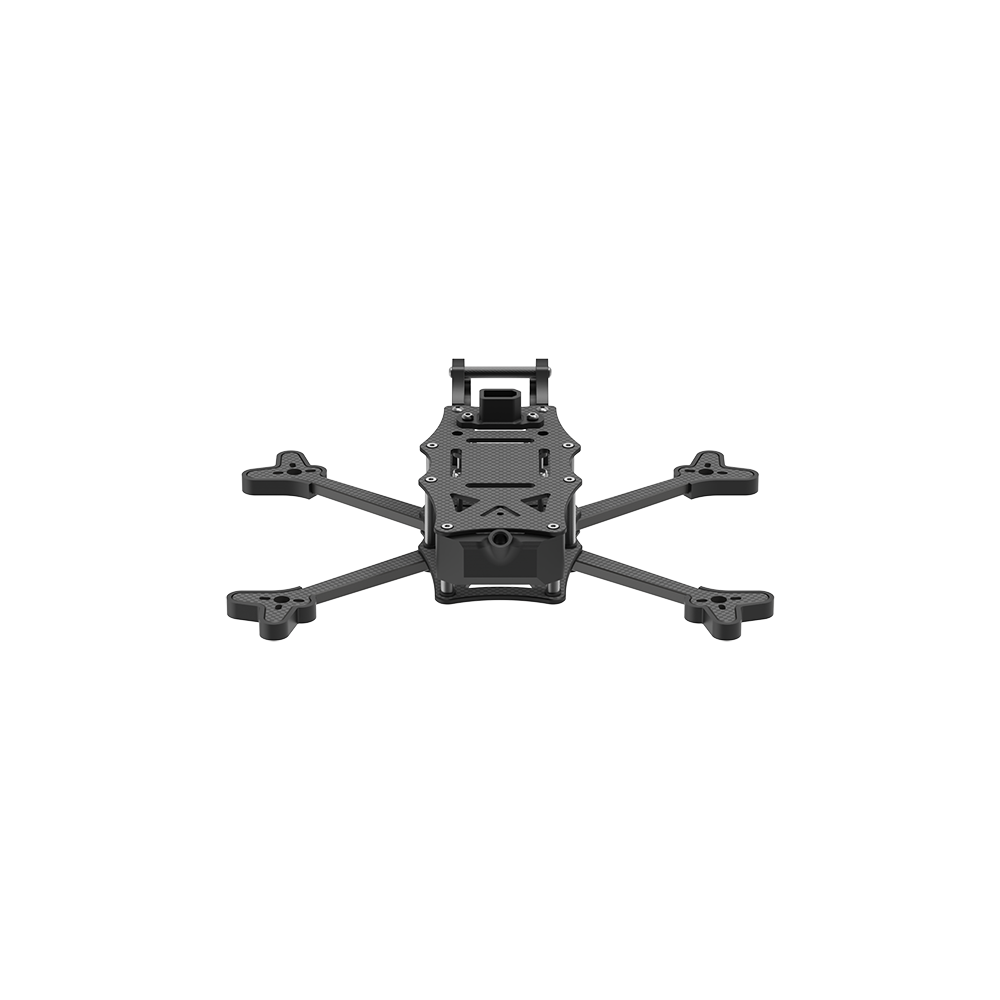

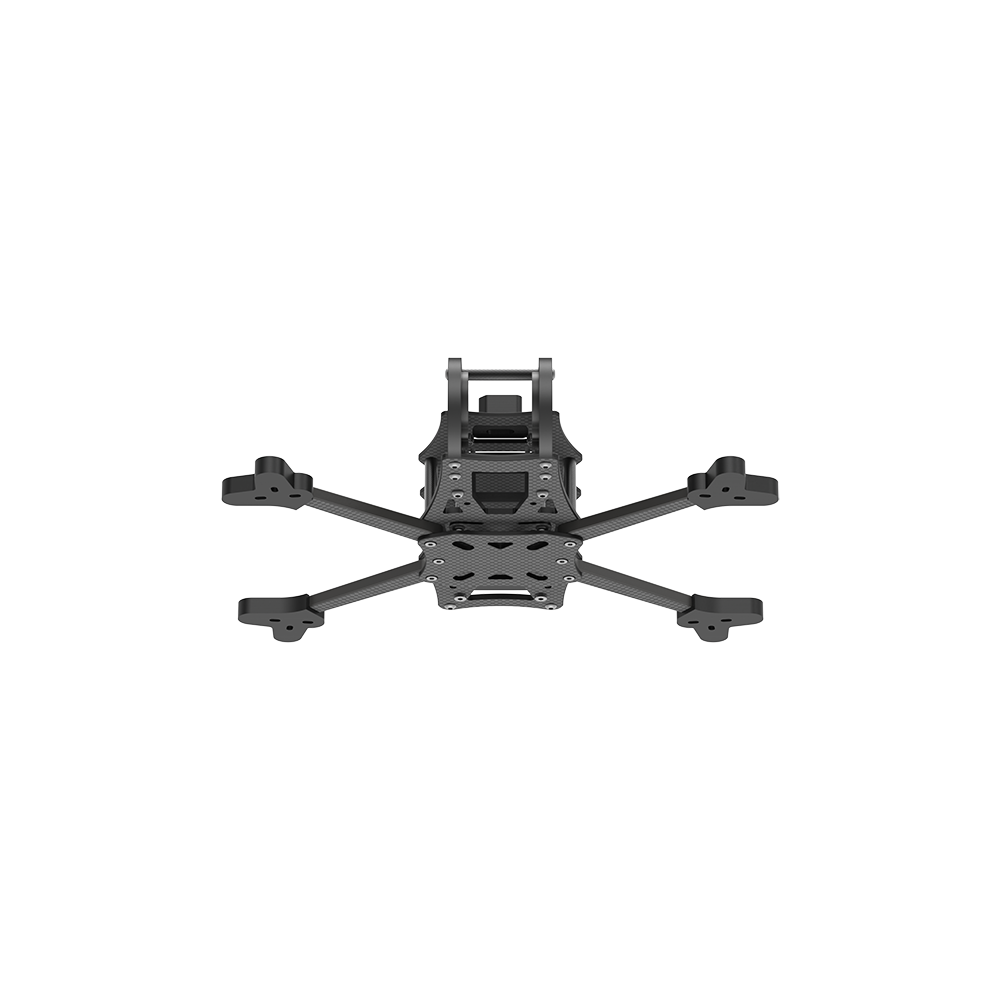

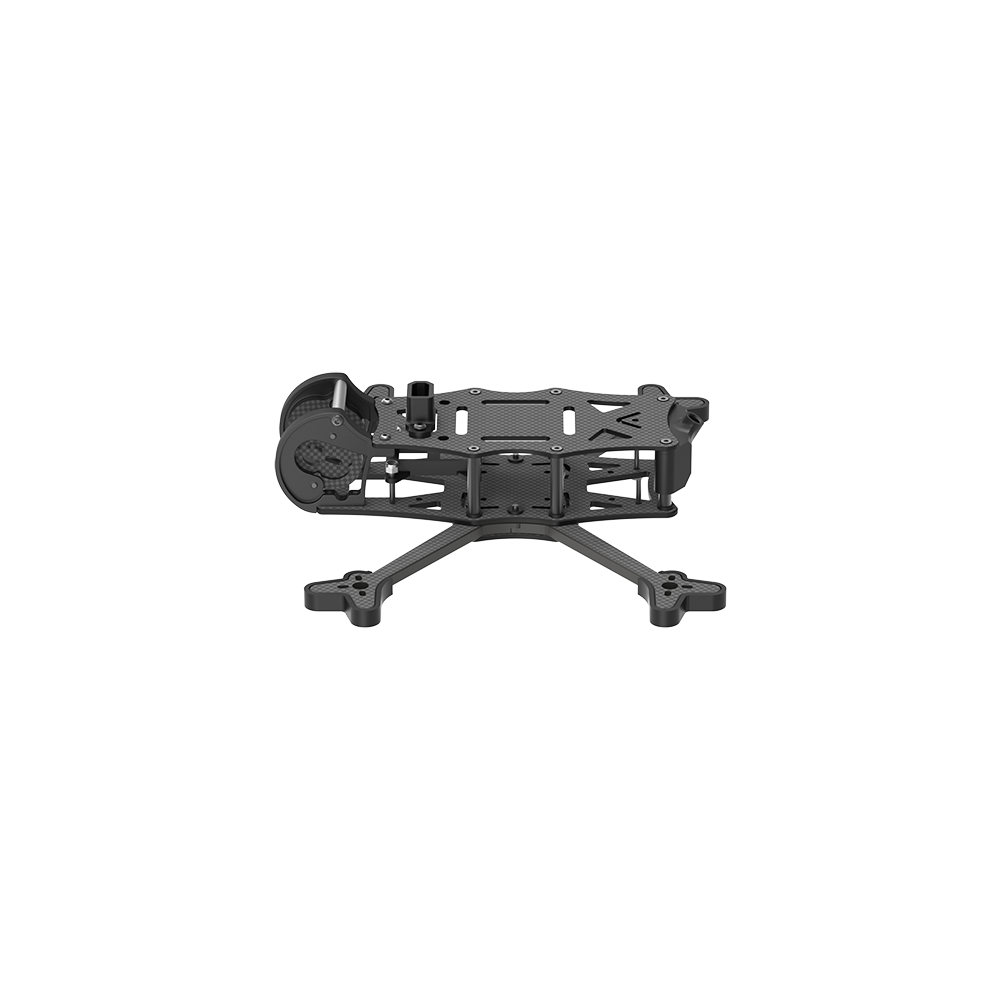

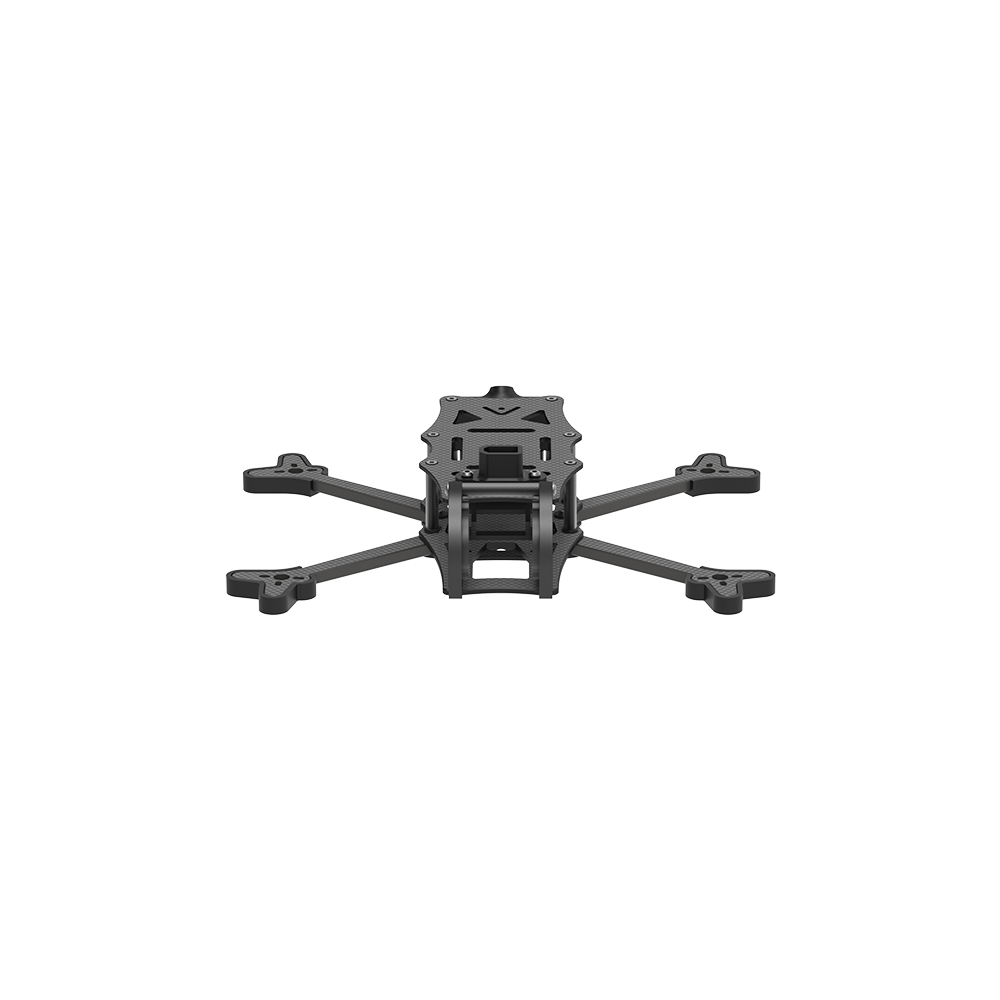

+Product+Name:+AOS+3.5+V5+Frame+Kit+
+
+Frame+wheelbase:+162mm+
+
+Frame+Dimension:+L133*W93*H30+mm+
+
+Arm+Thickness:+4mm+
+
+Top+Plate+Thickness:+1.5mm+
+
+Bottom+Plate+Thickness:+1.5mm+
+
+Upper+Plate+Thickness:+2mm+
+
+Max+Flight+Stack+Height:+20mm+
+
+Max+VTX+Height:+20mm+
+
+Motor+Mounting:+9×9-φ2mm/12×12-φ2mm+
+
+Flight+Stack+Mounting:+20*20+Φ2mm+/+25.5*25.5+Φ2mm+
+
+VTX+Mounting:+20*20/Φ2mm+/+25.5*25.5/Φ2mm+
+
+Weight:+68g+
+
+Compatible:+DJI+O3+air+unit/+Vista+HD+system/+BLITZ+Whoop+1.6W+VTX/DJI+O4+Air+Unit/DJI+O4+Air+Unit+Pro+
+++++Packing+List+++
+1+x+AOS+3.5+V5+Frame+Kit+
+
+1+x+TPU+Parts+
+
+1+x+Screw+Bag+
+
+2+x+Battery+Strap+
+
+2+x+Battery+pads+
+++++Note+++
+Due+to+manufacturing+processes.+the+thickness+of+our+products+may+have+a+standard+manufacturing+tolerance+of+±0.2mm.+The+size+of+the+hole+may+have+a+standard+manufacturing+tolerance+of+±0.1mm.+
+
+
+
+
+If+you+install+the+ESC+in+this+Frame+kit+and+it+does+not+fit+properly+due+to+the+capacitor.+please+remove+the+capacitor+on+the+ESC+for+normal+installation+and+connect+an+extra+capacitor+(a+50V+470uf/35v470uf+capacitor+is+recommended).+
+
+++++++++
